Asus RT-BE88U Specifications | |
|---|---|
| Wireless Specifications | |
| Wireless Standard | 802.11be (a/b/g/n/ac/ax) |
| Bands | Dual-Band |
| Overall Speed | 7200Mbps |
| Range | Medium/Large House |
| Concurrent Clients | 50 |
| Antenna | 4 External |
| Software Capabilities Level (1-10) | |
| Security Level | 10 |
| Parental Control | 10 |
| Traffic Control | 10 |
| Guest Network | Yes |
| Physical Ports | |
| WAN Ports | 1 (10Gbps) + 1 (2.5Gbps) |
| LAN Ports | 3 (2.5Gbps) / 4 (1Gbps) |
| USB Ports | 1 (USB 3.2) |
| Special Capabilities | |
| Beamforming Technology | YES |
| MU-MIMO Technology | YES |
| Mesh Support | Yes, AiMesh Technology |
| Repeater Mode | YES |
| Vendor-Specific Technology | AiMesh, AiProtection Technologies |
| Hardware Specifications | |
| Processor | 2.6GHz Quad-Core |
| Memory | 2GB |
| Dimension | 11.8 x 7.4 x 2.3 inches/ 300 x 188 x 60 mm |
| Weight | 2.337 lb / 1060 g |
Introduction
The arrival of Wi-Fi 7 routers represents a significant advancement in wireless technology, delivering enhanced performance through the 2.4 GHz , 5 GHz , 6GHz bands, and wider channels up to 320 MHz. A key innovation is Multi-Link Operation (MLO), which optimizes how devices use these bands for more efficient and faster communication. While early Wi-Fi 7 routers were positioned at a premium price point, manufacturers like ASUS are now broadening the accessibility of this technology with options like the RT-BE88U, a dual-band router geared towards both home and business users. By focusing on the 2.4 GHz and 5 GHz bands, the ASUS RT-BE88U offers a compelling entry point into the Wi-Fi 7 ecosystem.
Compared to higher-tier routers with 6 GHz and 320 MHz capabilities designed for the most demanding applications, the RT-BE88U provides a strong balance of performance, robust security features, and a comprehensive set of networking tools at a more consumer-friendly price. This makes it an attractive choice for a wide range of users seeking to upgrade to Wi-Fi 7. For those looking to experience the benefits of this next-generation Wi-Fi, the ASUS RT-BE88U (BE7200) stands out with its blend of speed, features, and value. At wifiadviser.com, we are dedicated to providing in-depth analysis of the latest networking technologies. Our goal is to empower you with the knowledge to make informed decisions and optimize your Wi-Fi network. Join us as we delve into the ASUS RT-BE88U and explore its potential to be a key player in the evolution of Wi-Fi connectivity.
Unboxing Your New ASUS RT-BE88U: A First Look

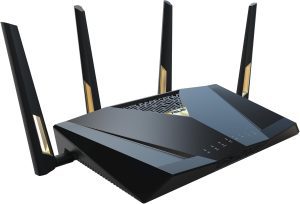

The ASUS RT-BE88U comes in a compact and efficiently designed package. The router features a robust design with four detachable and adjustable external antennas, allowing users to optimize Wi-Fi signal direction for enhanced coverage. The router’s dimensions are 300 x 188 x 60.5 mm, and it weighs 1110 g. Inside, you’ll find everything you need to get your network up and running.
Back Panel and Connectivity
The back of the RT-BE88U hosts a comprehensive array of ports for versatile connectivity. You’ll find:
| Port/Feature | Description |
|---|---|
| 10Gbps WAN/LAN port | Provides a high-speed connection for either your internet service or a local network device. |
| 10Gbps SFP+ port | Offers a high-speed connectivity option for fiber connections, adding to the router’s flexibility and supporting future network upgrades. |
| 2.5Gbps WAN/LAN port | Offers a high-speed connection for either your internet service or a local network device. |
| 2.5Gbps LAN ports | Enable multi-gigabit speeds for compatible wired devices, maximizing network performance. One of these is designated as a gaming port. |
| 1Gbps LAN ports | Provide further connectivity options for standard wired devices. |
| USB 3.2 Gen 1 port | Allows you to connect USB storage devices for network file sharing, connect a 4G/5G modem for a backup WAN connection, or connect other USB peripherals. |
| WPS button | For easy wireless connection. |
| Reset Button | For resetting the device. |

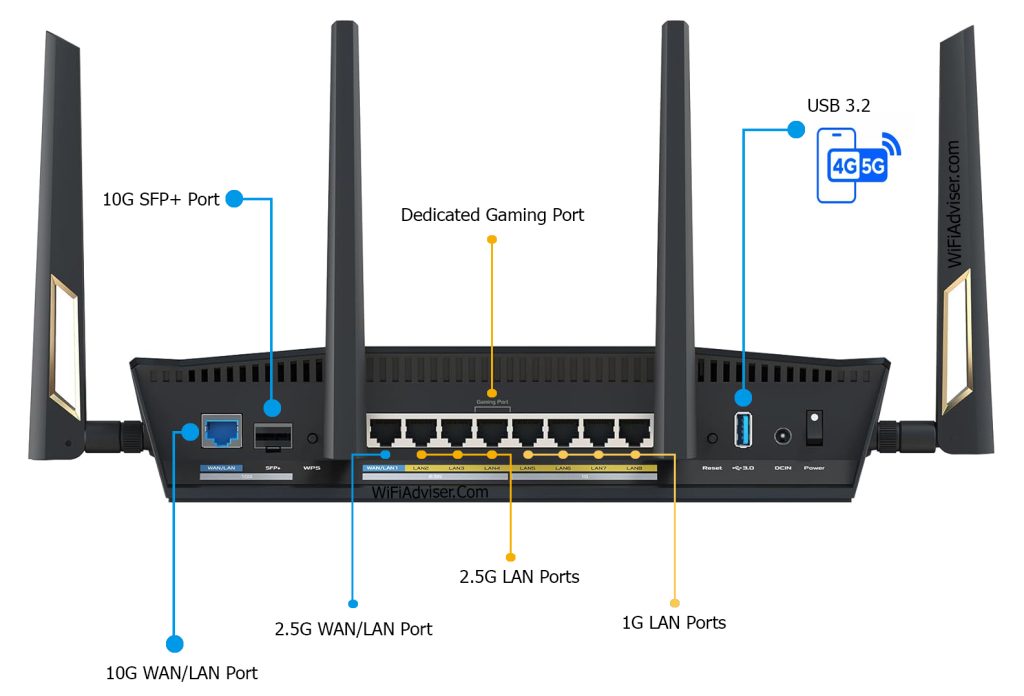

Asus RT-BE88U Router Back Panel
Front Panel LEDs
The front panel of the RT-BE88U features LED indicators that provide at-a-glance information about the router’s status:
- Power status
- 2.4 GHz and 5 GHz Wi-Fi band status: Indicates the status of your wireless networks.
- USB status: Shows the connection status of any connected USB devices.
- LAN ports status: Displays the activity and connection status of the LAN ports.
- SFP+ port status: Indicates the connection status of the SFP+ port.
- 10Gbps port status: Shows the connection status of the 10Gbps port.
- Internet connection status
Internal Hardware
Inside, the RT-BE88U is powered by a high-performance 2.6 GHz quad-core processor. This powerful processor is the heart of the router, responsible for efficiently managing network traffic, even when handling numerous connected devices and demanding applications. It ensures smooth and reliable performance across your entire network. The router is also equipped with 2GB of RAM. This ample memory allows the router to handle a large number of concurrent connections and complex network tasks, such as running multiple VPNs, supporting high-bandwidth streaming, and managing extensive network security protocols, without experiencing slowdowns or performance bottlenecks.
Power of Multi-WAN on the Asus RT-BE88U
The Asus RT-BE88U stands out with its versatile Multi-WAN support, giving you multiple options for your internet connection. This means more reliability and the potential for even faster speeds. Here’s a detailed look:
- Dual 10 Gigabit Ports for Maximum Flexibility: The RT-BE88U is equipped with two 10 Gigabit ports: a 10 Gigabit SFP+ port and a 10 Gigabit WAN/LAN Ethernet port. These ports support both fiber and copper connections, providing flexibility for different network setups and ensuring compatibility with future high-speed internet standards.
- Flexible Secondary WAN Options for Enhanced Reliability: The RT-BE88U offers two distinct options for a secondary WAN connection, providing flexibility based on your needs and available hardware:
- 2.5 Gigabit Ethernet WAN/LAN Port as Secondary WAN: The 2.5 Gigabit Ethernet (2.5Gbps) port can be configured as a secondary internet (WAN) connection. This allows for automatic failover if your primary connection drops, ensuring continuous internet access.
- USB Dongle as Secondary WAN: Alternatively, you can utilize a compatible USB cellular modem (dongle) connected to the router’s USB port as a secondary internet connection. This provides another avenue for backup internet access or for inclusion in a dual-WAN setup.
✅ A standout feature of the RT-BE88U is its support for WAN aggregation. This allows you to combine the bandwidth of your 10Gbps WAN/LAN port and your 2.5Gbps WAN/LAN port to achieve even higher internet speeds. For example, if you have a 1Gbps connection and a 2.5Gbps connection, WAN aggregation allows you to use them together for a potential combined speed of 3.5Gbps.
ASUS RT-BE86U and Easy 4G/5G Tethering
The ASUS RT-BE88U can serve as a reliable internet hub, especially when wired connections are unreliable or unavailable. For situations such as travel, home internet outages, or limited internet options, the router supports 4G/5G tethering. You can connect your phone to the router’s USB port for alternative primary or backup internet using 4G or 5G data. Once configured, all connected devices can share this mobile internet connection via Wi-Fi or wired cables, eliminating the need for individual hotspots.
ASUS maintains a list of compatible modems to ensure broad compatibility and reliable performance. This feature delivers flexible and dependable internet access across a variety of use cases. This feature is particularly useful for users who work remotely or rely on a constant internet connection for essential activities. It also provides peace of mind for families or businesses that need to stay connected during emergencies or unexpected outages.
✅ Setting up these WAN options is simplified by the AI WAN detection feature. The router intelligently detects the type of internet connection you have, streamlining the initial setup process.
